EchoPanel® Current

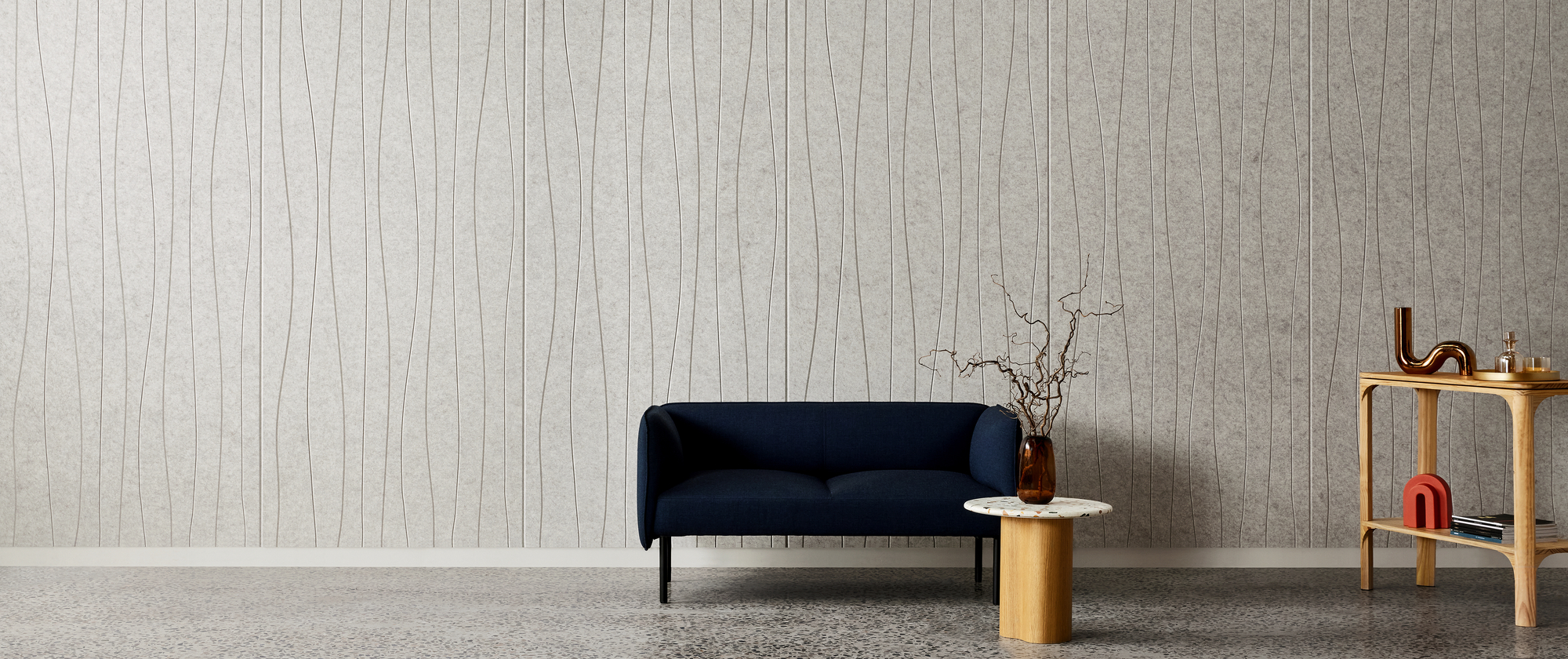

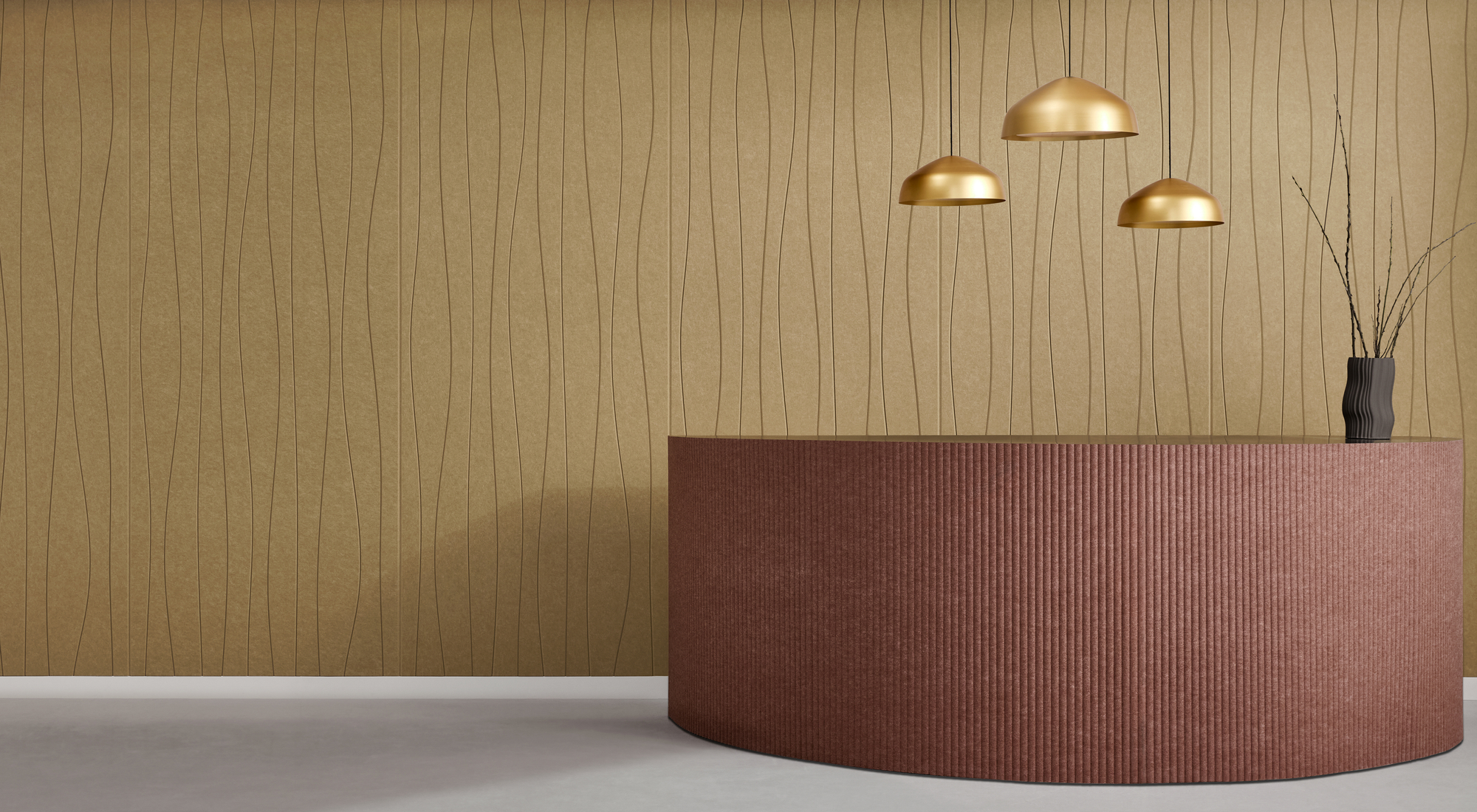

The design of EchoPanel^® Current is reminiscent of ocean shorelines with its free-flowing linework, created using unique angled cuts that simulate a 3D effect, evoking a sense of calm through biophilic references.

Achieving the same acoustic and environmental credentials as EchoPanel^® 12mm, it is a Climate Active certified carbon neutral product, as well as Global GreenTag^™ certified, Red-List free and has published ingredient transparency through Declare. For higher acoustic performance, the Current design is also available in EchoPanel^®24mm.

Colourways

500

454

908

101

442

468

580

402

487

495

274

269

542

550

447

444

106

124

193

295

381

167

484

721

579

338

384

349

330

633

660

365

573

551

Download Colourways

Order Sample

Product Specifications

Designer:

Woven Image

Dimensions:

Length: 2750mm (+/-2 mm), Width: 1100mm (+/- 2mm), Thickness: 12mm (+/- 7%). Also available in 24mm (+/-7%), specifications will differ.

Composition:

100% PET (60%-80% post-consumer recycled)

Fire Test Result:

AS 1530.3
ASTM E84 Unadhered: Class 1 or A
GB 8624 B1
BS EN 13501.1: Classification B - s1, d0
ISO 9705: Group 1
BS EN 45545-2 + A1 Annex C: CIT: 0.03

Sound Absorption Test Method:

AS ISO 11654: 2002 (2016)
AS ISO 354: 2006 (R2016)
ASTM C423 - 17

Weighted Alpha Coefficient (αw):

Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)

Sound Absorption Average (SAA):

Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75

Noise Reduction Coefficient (NRC):

Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75

Sound Absorption Class:

D (Direct fix)
D (20mm air gap)
C (50mm air gap)

Download Technical Reports Download Specification

Sustainability

Carbon Neutral

Climate Active is a government-backed voluntary initiative providing a rigorous, transparent and science-based way to measure, reduce and offset carbon emissions.

Environmental Product Declaration

An independently verified and registered document, communicating quantifiable and comparable environmental impact data on the life cycle of a product.

Global GreenTag™ GreenRATE Level A

A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.

Global GreenTag™ Product Health Declaration (PHD) - Platinum HealthRATE

A certification tool recognising full ingredient transparency, compliant with core WELL™ Features and LEED® Product Disclosure credits, that proves products are safe for human health.

Declare

A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.

Red List Free

Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.

Low VOC Emissions

Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
