EchoPanel® Meridian

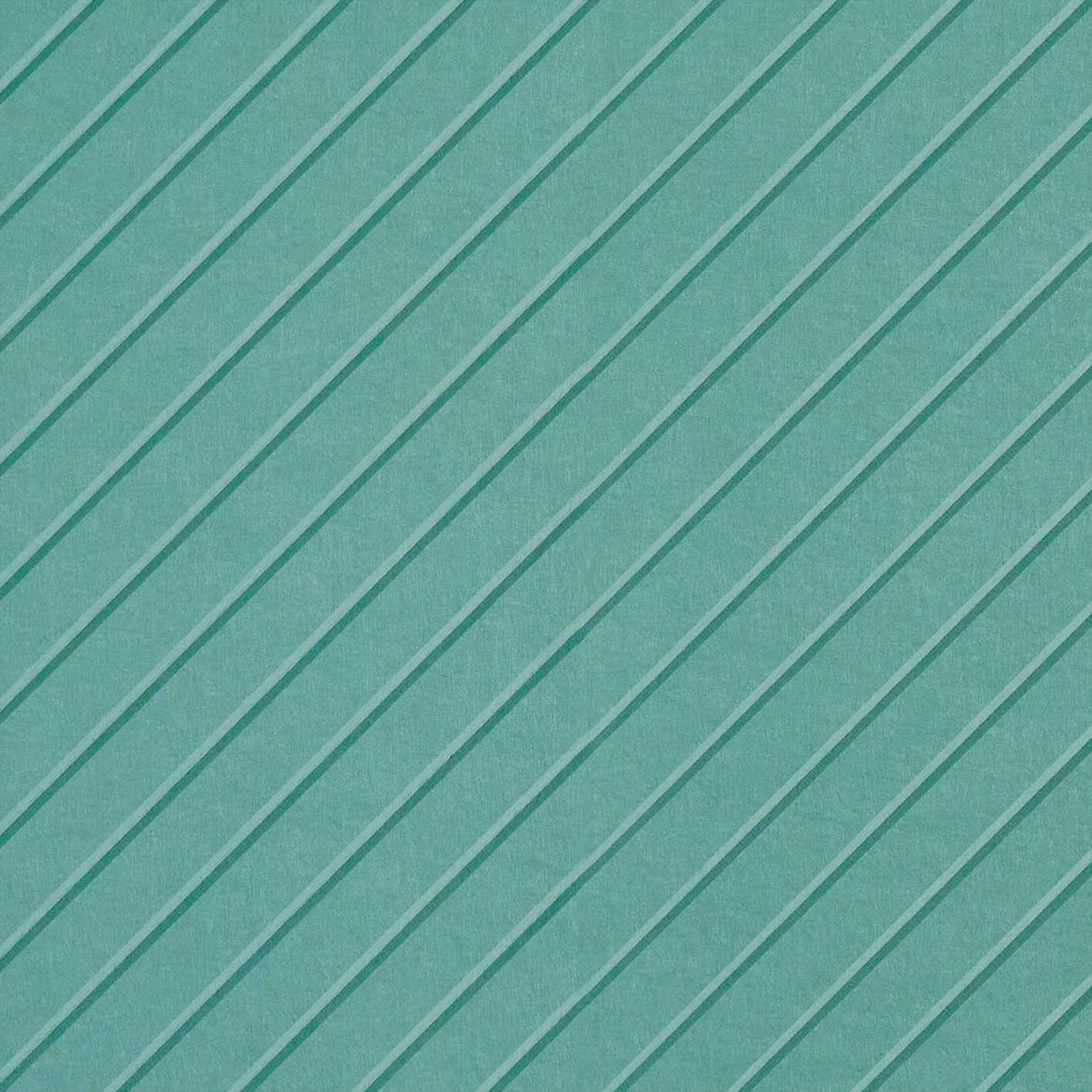

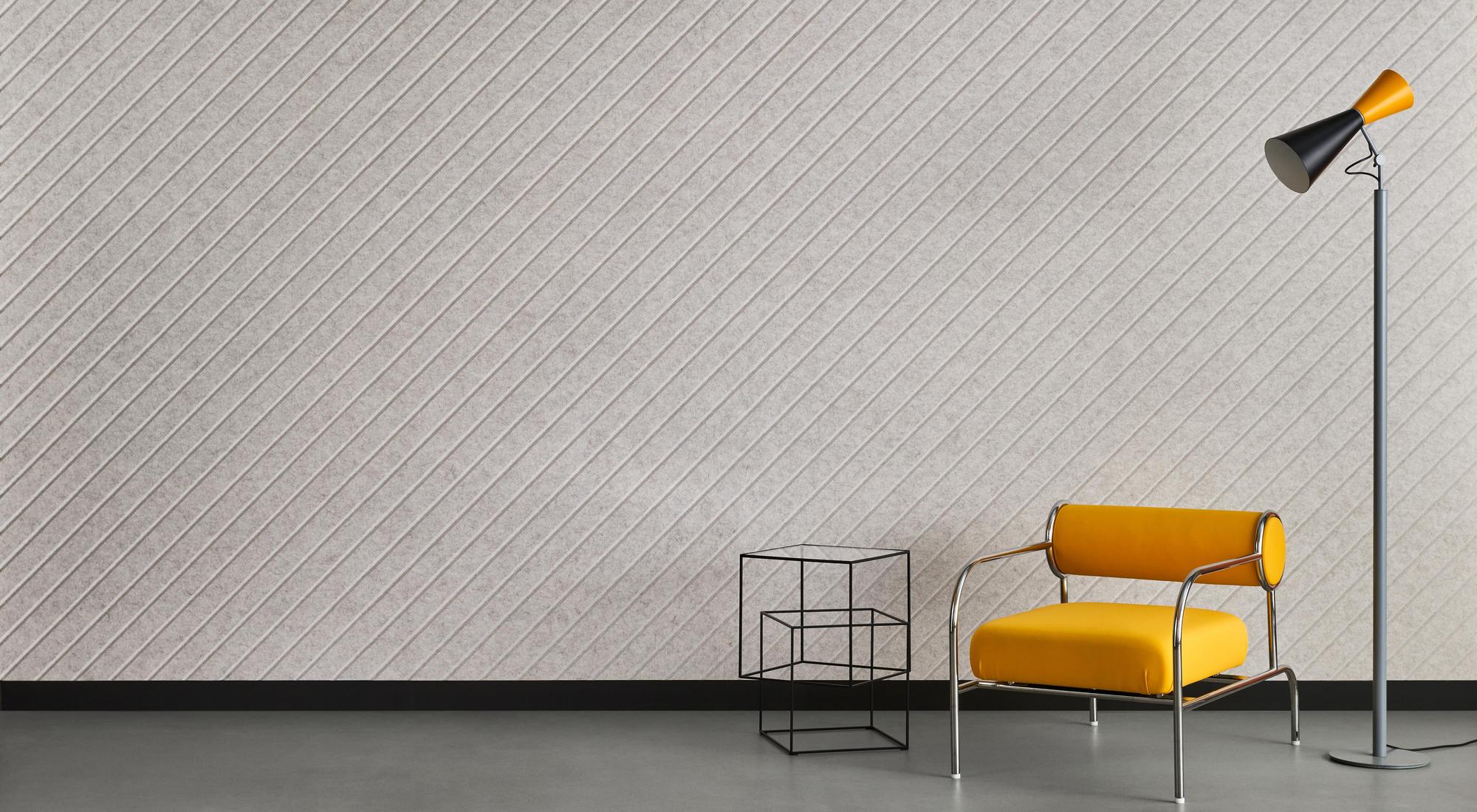

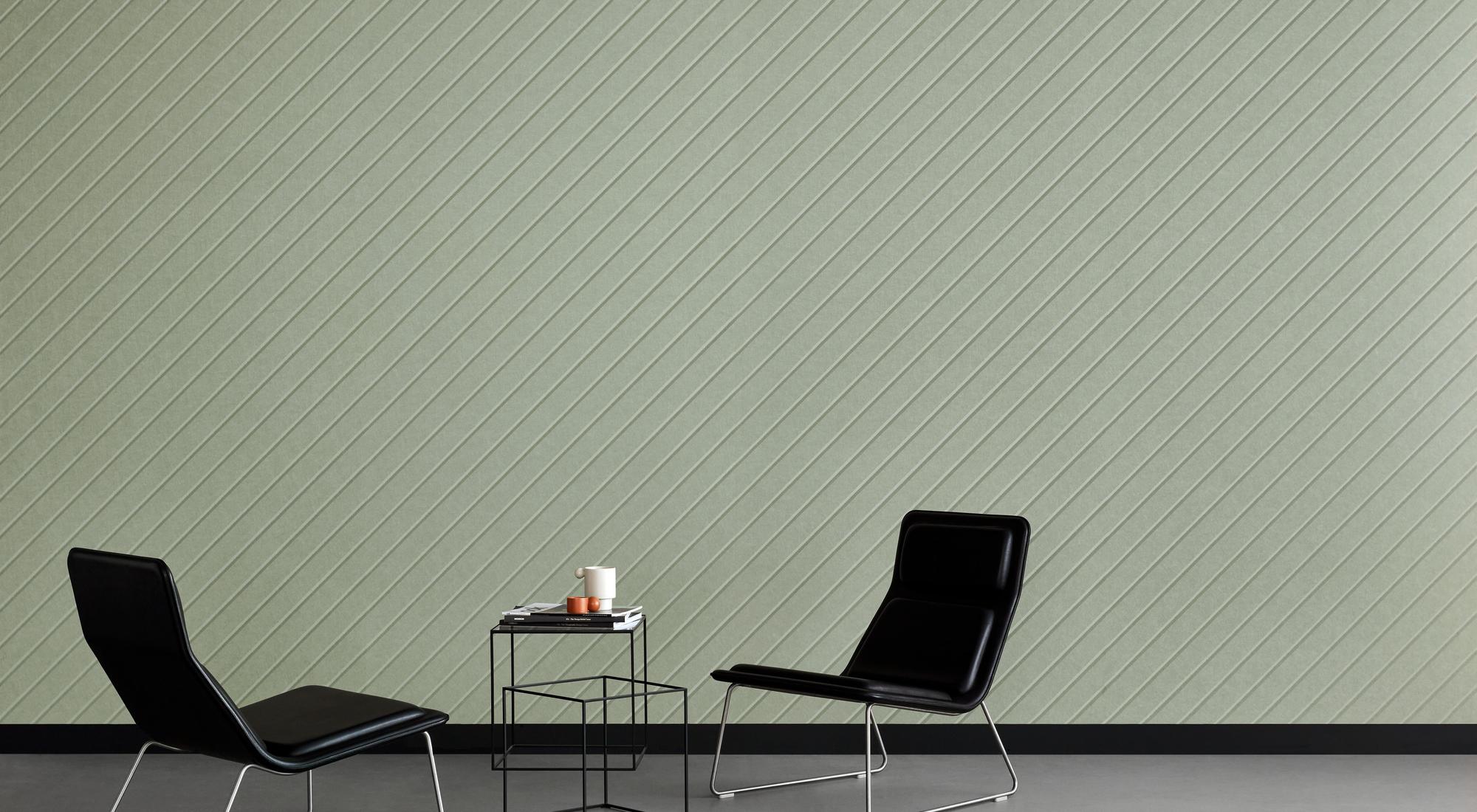

EchoPanel® Meridian acoustic panels feature a precision cut v-groove linework at a 45 degree angle, and come in either 12mm or 24mm thicknesses to suit the acoustic requirements of your project.
Made using 60%-80% post-consumer recycled PET from plastic bottles, Meridian comes with the environmental certificates of EchoPanel® that are recognised by International Green Building Tools including WELL™, LEED®, GreenStar® and BREEAM®.
Colourways
500
454
908
101
442
468
580
402
487
495
274
269
542
550
447
444
106
124
193
295
381
167
484
721
579
338
384
349
330
633
660
365
573
551
Product Specifications
Designer:
Woven Image
Dimensions:
Length: 2750mm (+/-2 mm), Width: 1100mm (+/- 2mm), Thickness: 12mm (+/- 7%). Also available in 24mm (+/-7%), specifications will differ.
Composition:
100% PET (60%-80% post-consumer recycled)*
Fire Test Result:
AS 1530.3
BS EN 13501.1: Classification B - s1, d0
ISO 9705: Group 1
ASTM E84 Unadhered: Class 1 or A
GB 8624 B1
BS EN 45545-2 + A1 Annex C: CIT: 0.05
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17
Weighted Alpha Coefficient (αw):
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Sound Absorption Average (SAA):
Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75
Noise Reduction Coefficient (NRC):
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class:
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
Sustainability
Carbon Neutral
Climate Active is a government-backed voluntary initiative providing a rigorous, transparent and science-based way to measure, reduce and offset carbon emissions.
Environmental Product Declaration
An independently verified and registered document, communicating quantifiable and comparable environmental impact data on the life cycle of a product.
Global GreenTag™ GreenRATE Level A
A third-party certification that assesses products’ ingredients, supply chain and manufacture for environmental, social and Building Code compliance. GreenRate Level A is a recognised initiative for Green Star Responsible Products credits.
Global GreenTag™ Product Health Declaration (PHD) - Platinum HealthRATE
A certification tool recognising full ingredient transparency, compliant with core WELL™ Features and LEED® Product Disclosure credits, that proves products are safe for human health.
Declare
A transparency initiative by the International Living Future Institute, Declare is an ingredients label for building products that enables design and build teams to make informed choices.
Red List Free
Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
