EchoPanel® Paling

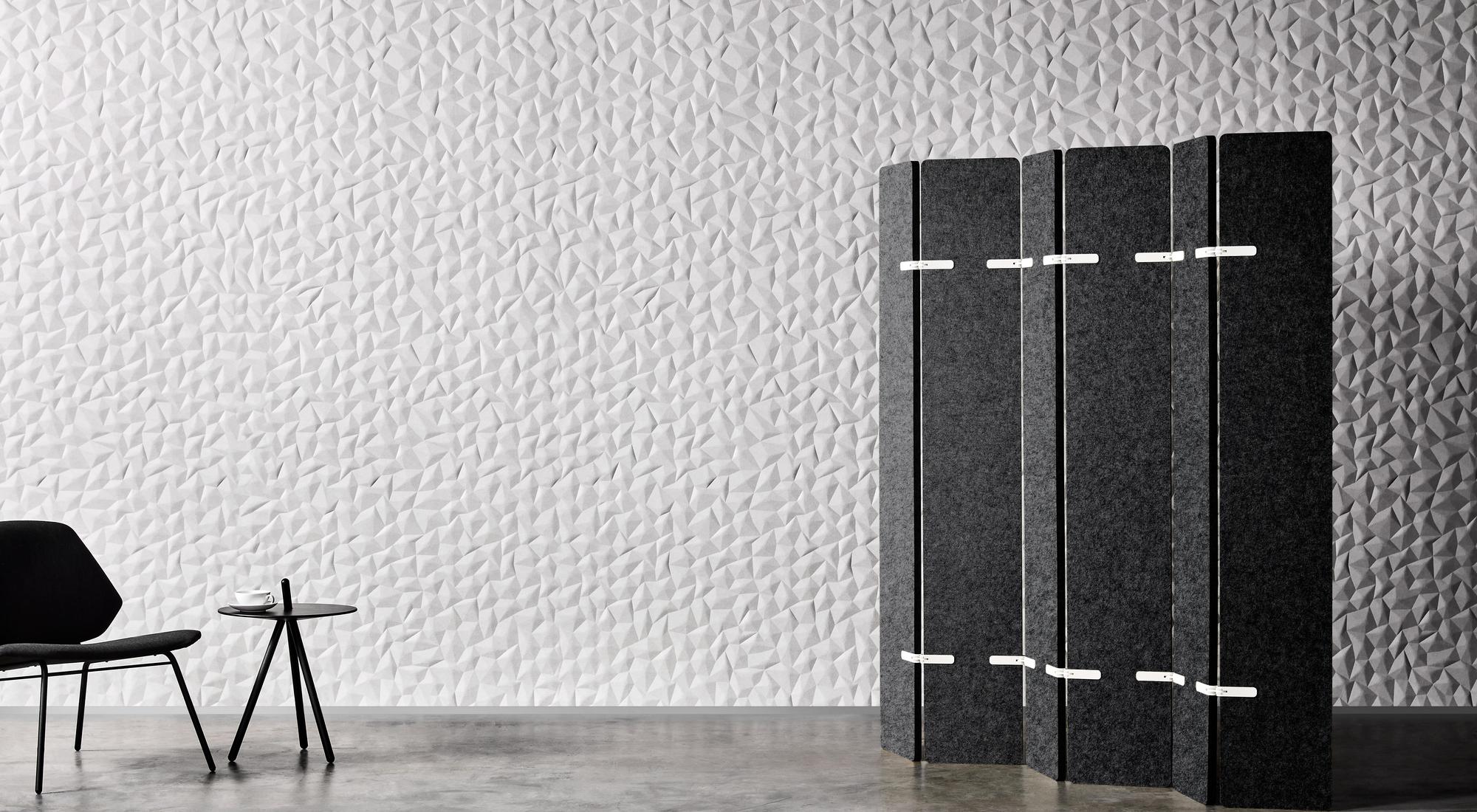

EchoPanel® Paling is a free-standing space dividing solution, that offers visual and acoustic privacy in busy workplaces.

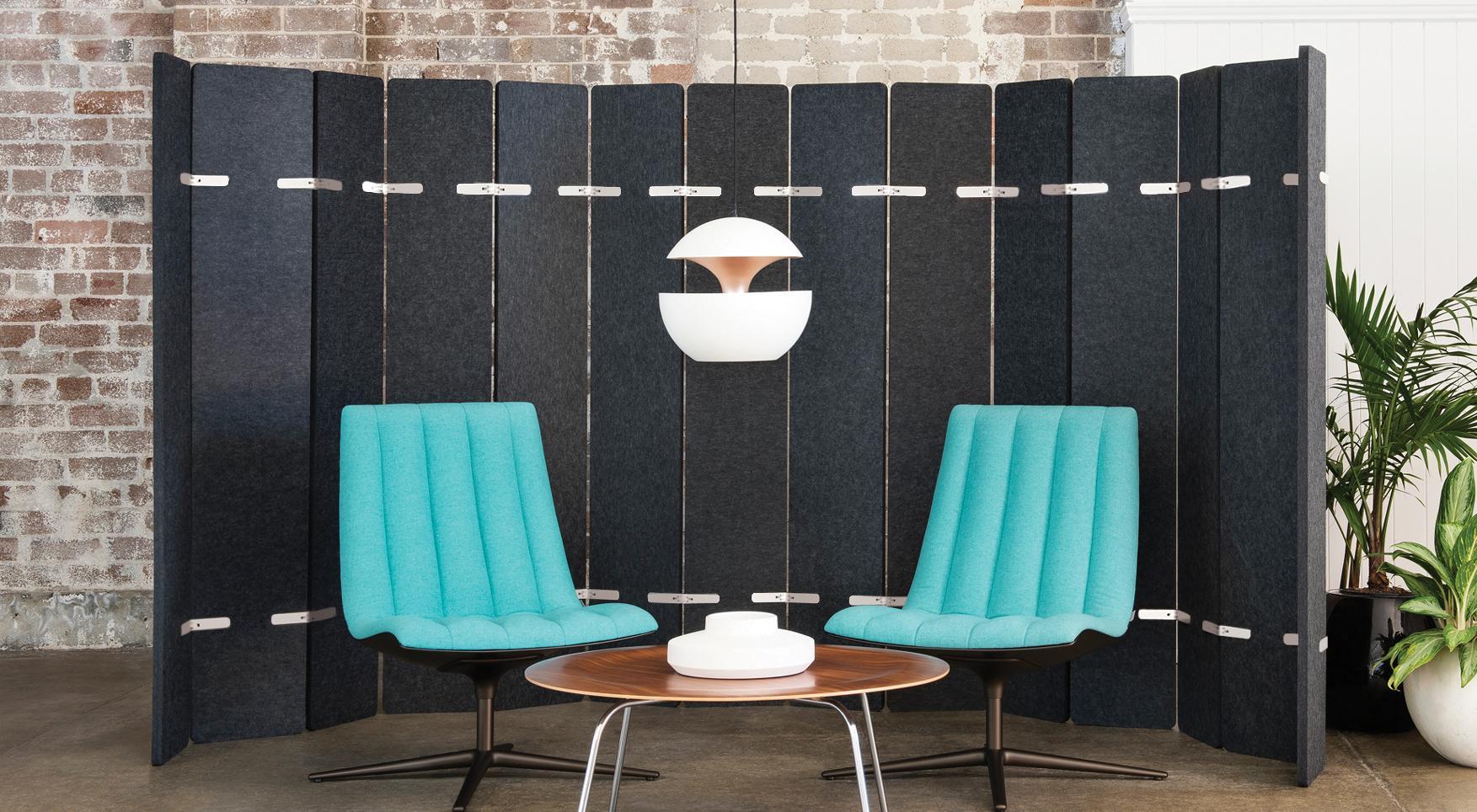

Paling is a modular system, giving users the flexibility to choose the length and configuration of the screen. Made of 24mm EchoPanel®, these acoustic partitions are pinnable and made using 60% post-consumer recycled PET plastic bottles. Sold separately pivot joiners allow for concertina opening at varying angles and fold flat when not in use, available in cream or charcoal colourways.
Colourways
454
442
542
Product Specifications
Designer:
Woven Image
Dimensions:
Height: 1750 (+/- 2mm), Width: 285 (+/- 2mm), Thickness: 24mm (+/- 7%
Joiners are available in either Cream or Charcoal
Composition:
100% PET (60% post-consumer recycled)
Fire Test Result:
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
ASTM E84 Unadhered: Class 1 or A
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
Weighted Alpha Coefficient (αw):
EchoPanel® 24mm achieves: Direct fix: 0.45 (MH), 20mm air gap: 0.50 (MH), 50mm air gap: 0.70 (MH)
Sound Absorption Average (SAA):
EchoPanel® 24mm achieves:
Direct fix: 0.63
Noise Reduction Coefficient (NRC):
EchoPanel® 24mm achieves:
Direct fix: 0.65, 20mm air gap: 0.75, 50mm air gap: 0.85
Sound Absorption Class:
D (Direct fix)
Additional Acoustic Information:
Sound Absorption Class result is based on EchoPanel® 24mm. MH = Mid to High Frequency
Sustainability
Low VOC Emissions
Products with low volatile organic compounds (VOCs) are less harmful to the environment and human health and contribute to good Indoor Air Quality (IAQ).
