EchoPanel® Astro

Order Sample
EchoPAnel Astro 349 Hero 01.jpg
EchoPanel Astro 660 Hero.jpg
EchoPanel® Astro is a striking digital print on 12mm EchoPanel® acoustic panels. The designs' faceted interlocking linework imitates crystalline forms.

EchoPanel® Astro is manufactured using 60%-80% post-consumer recycled PET. The design can be printed single-sided for feature wall applications, or double-sided for workstation screens or other partitioning applications.

Colourways

Astro 503 Calcite

503

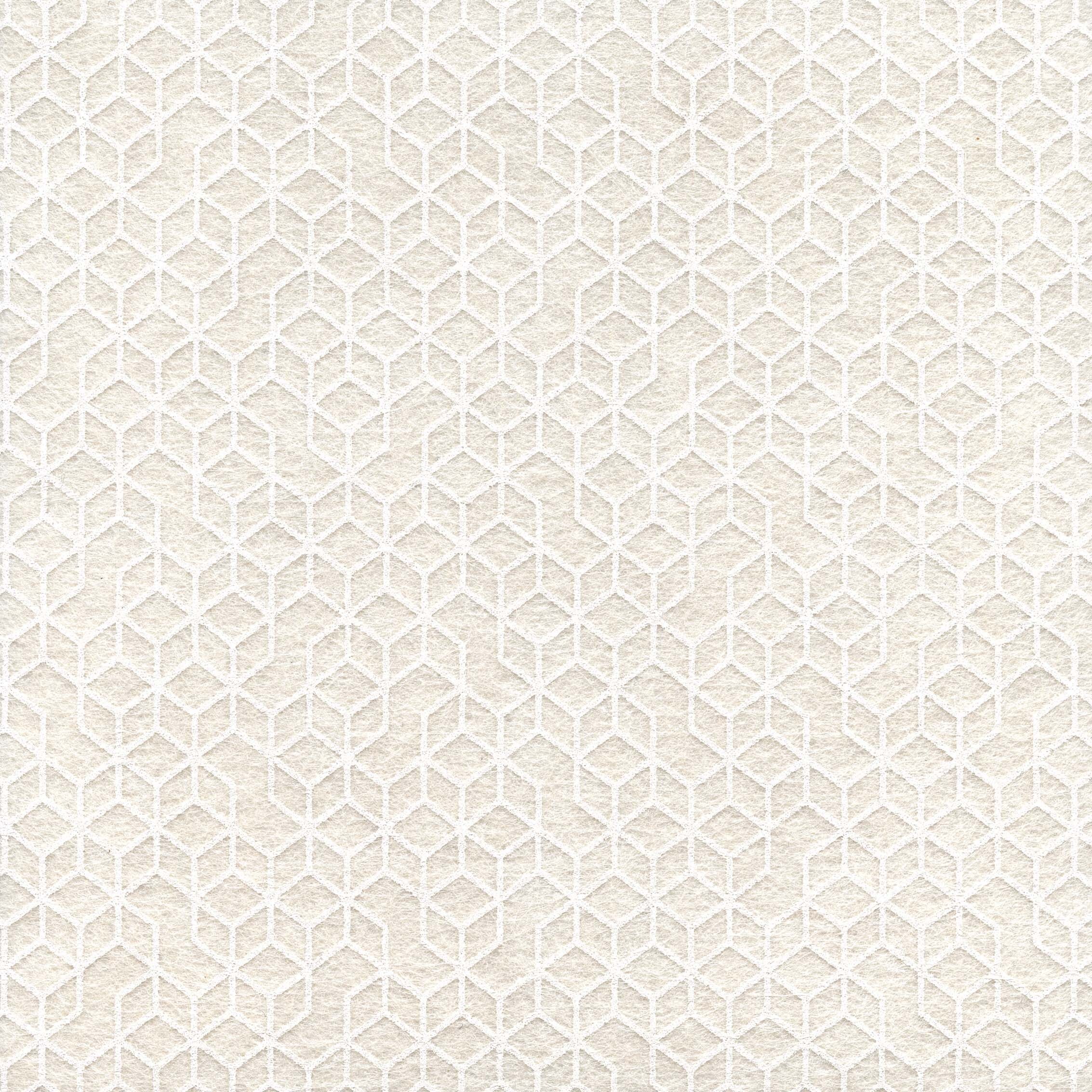

Astro 907 Sandstone

907

Astro 100 Ice

100

Astro 402 Pebble

402

Astro 580 Sage

580

Astro 444 Smoke

444

Astro 544 Starlight

544

Astro 545 Steel

545

Astro 274 Orchid

274

Astro 294 Ruby

294

Astro 487 Blush

487

Astro 576 Magenta

576

Astro 124 Ochre

124

Astro 167 Cinnamon

167

Astro 349 Vineyard

349

Astro 384 Olive

384

Astro 621 Foam

621

Astro 633 Pacific

633

Astro 660 Coronet

660

Astro 365 Navy

365

Download Colourways

Order Sample

Product Specifications

Designer:

Woven Image (Amy Saunders)

Dimensions:

Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm), Thickness: 12mm (+/- 7%)

Pattern Repeat:

Horizontal: 196mm, Vertical 163mm

Composition:

100% PET (60% post-consumer recycled PET)

Fire Test Result:

AS 1530.3
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
GB 8624 B1

Sound Absorption Test Method:

AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17

Weighted Alpha Coefficient (αw):

Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)

Sound Absorption Average (SAA):

Direct fix: 0.43, 20mm air gap: 0.60, 50mm air gap: 0.75

Noise Reduction Coefficient (NRC):

Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75

Sound Absorption Class:

D (Direct fix)
D (20mm air gap)
C (50mm air gap)

Download Technical Reports Download Specification

View other geometric designs
