EchoPanel® Astro
EchoPanel® Astro is a striking digital print on 12mm EchoPanel® acoustic panels. The designs' faceted interlocking linework imitates crystalline forms.
EchoPanel® Astro is manufactured using 60%-80% post-consumer recycled PET. The design can be printed single-sided for feature wall applications, or double-sided for workstation screens or other partitioning applications.
Colourways
503
907

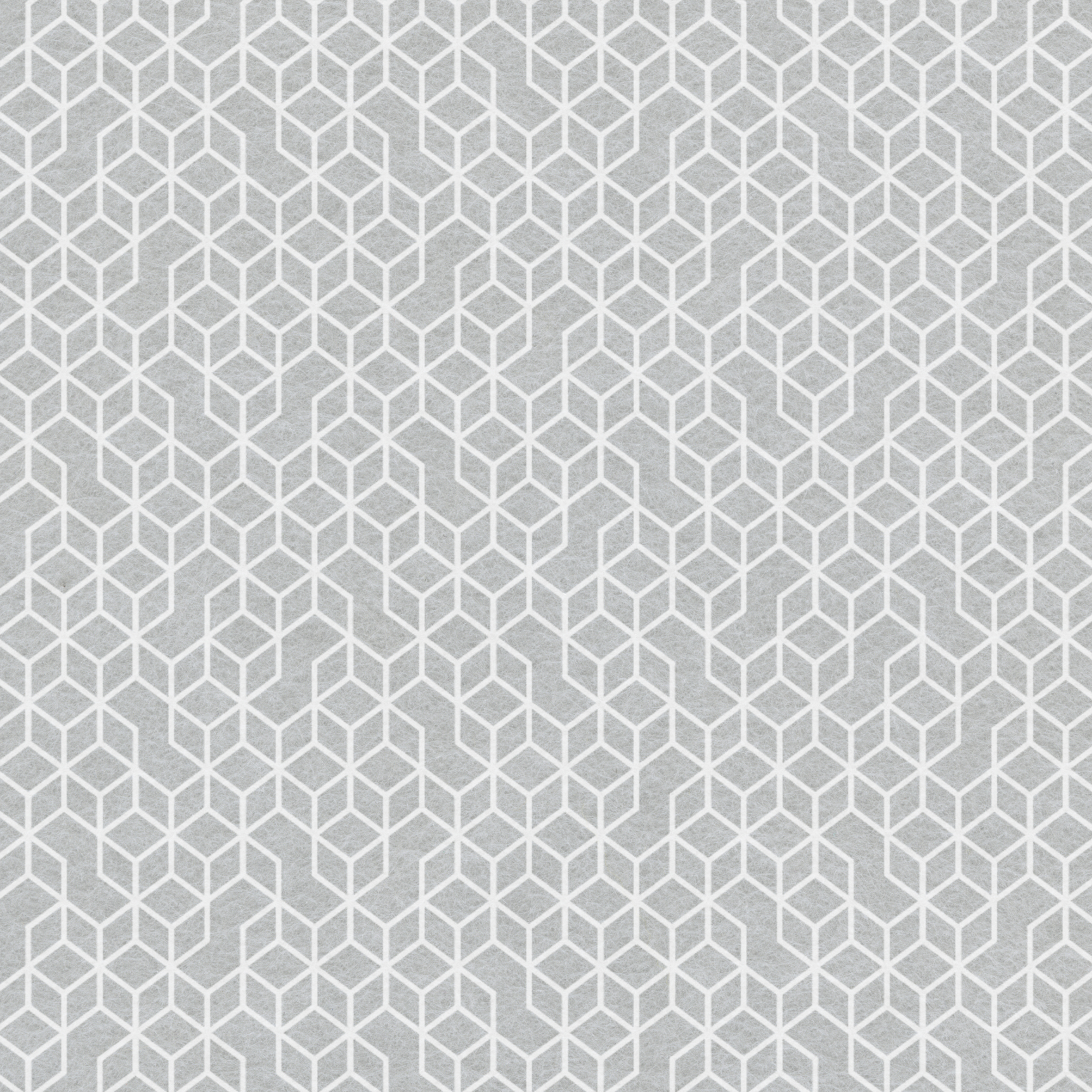

100

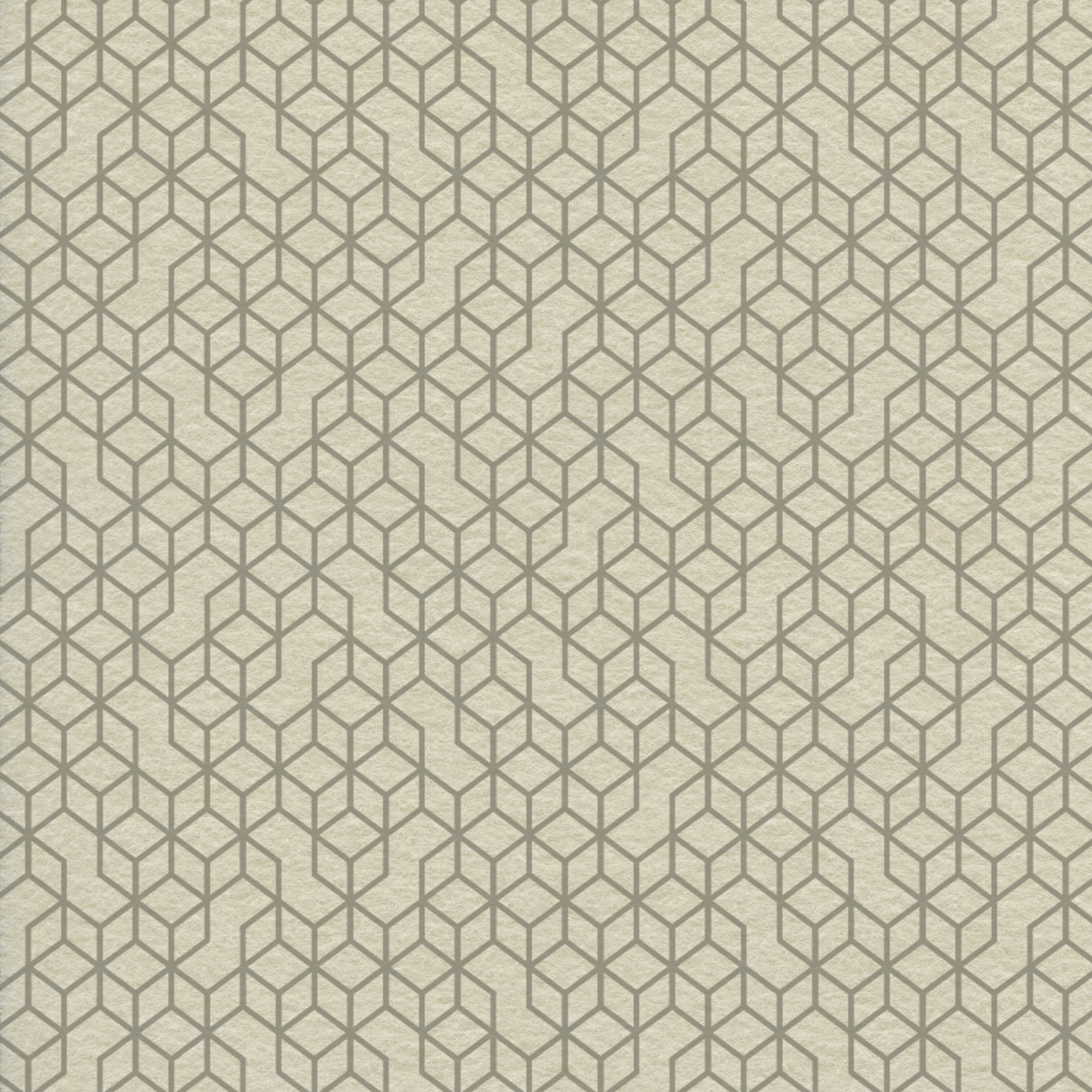

402
580

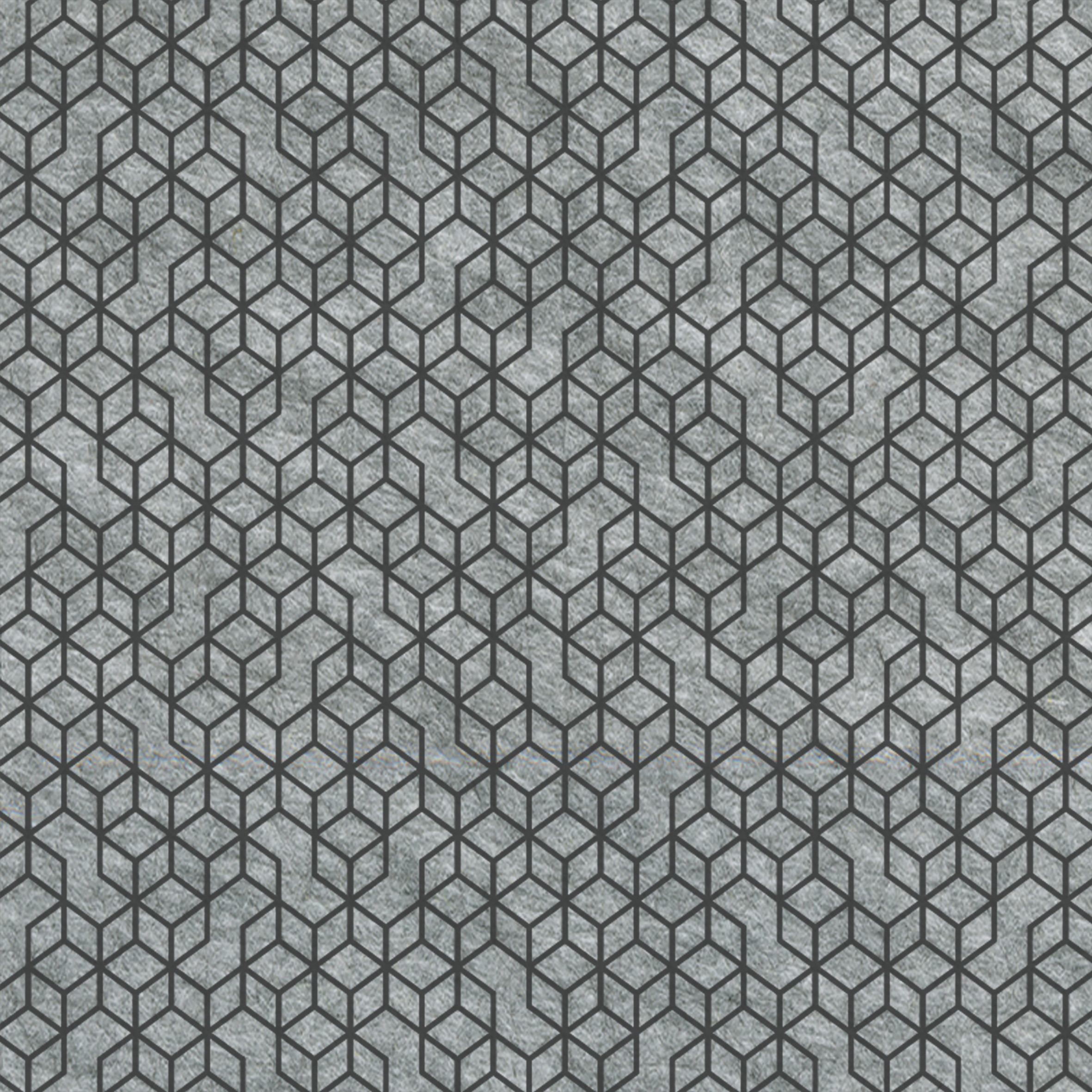

444

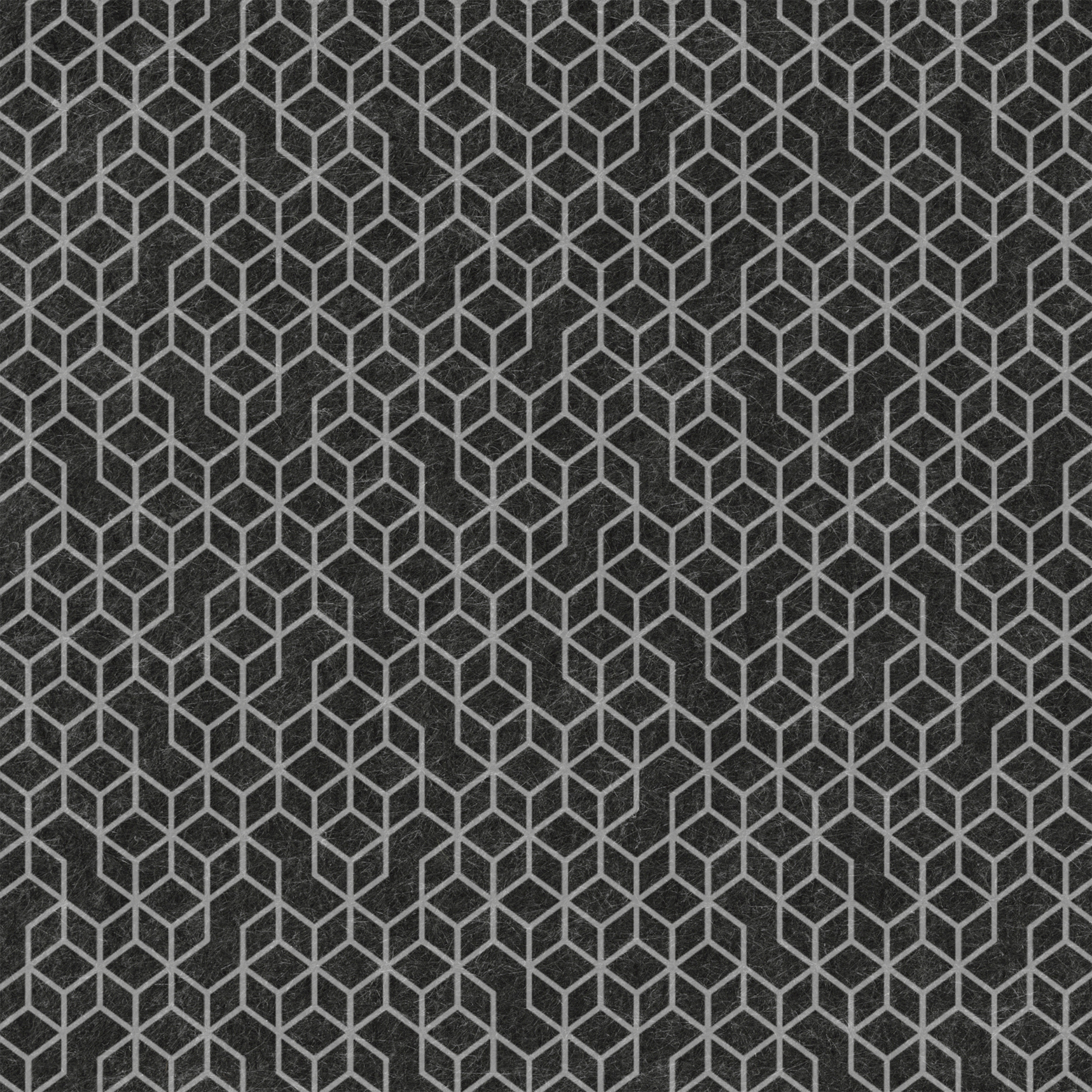

544

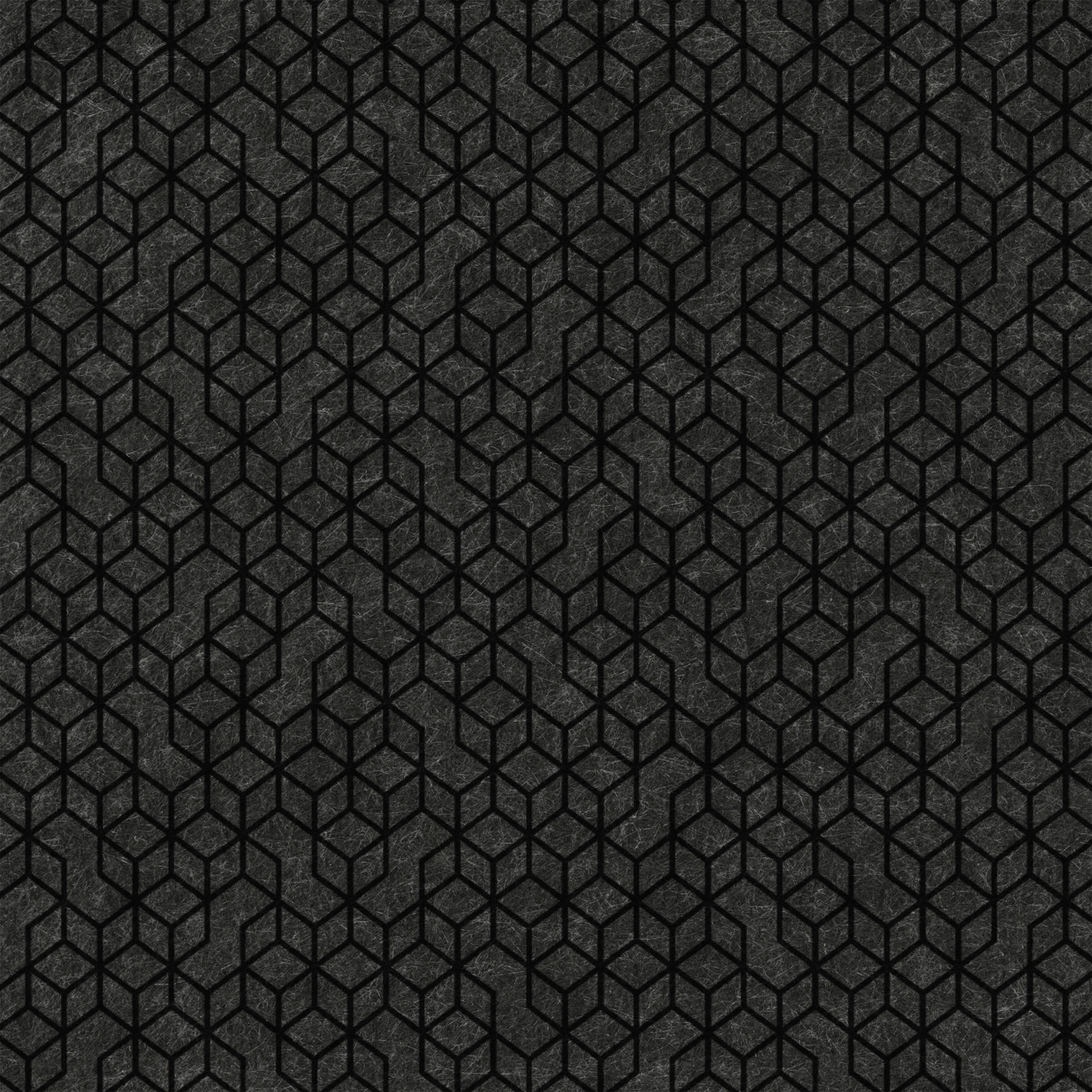

545
274
294
487
576
124

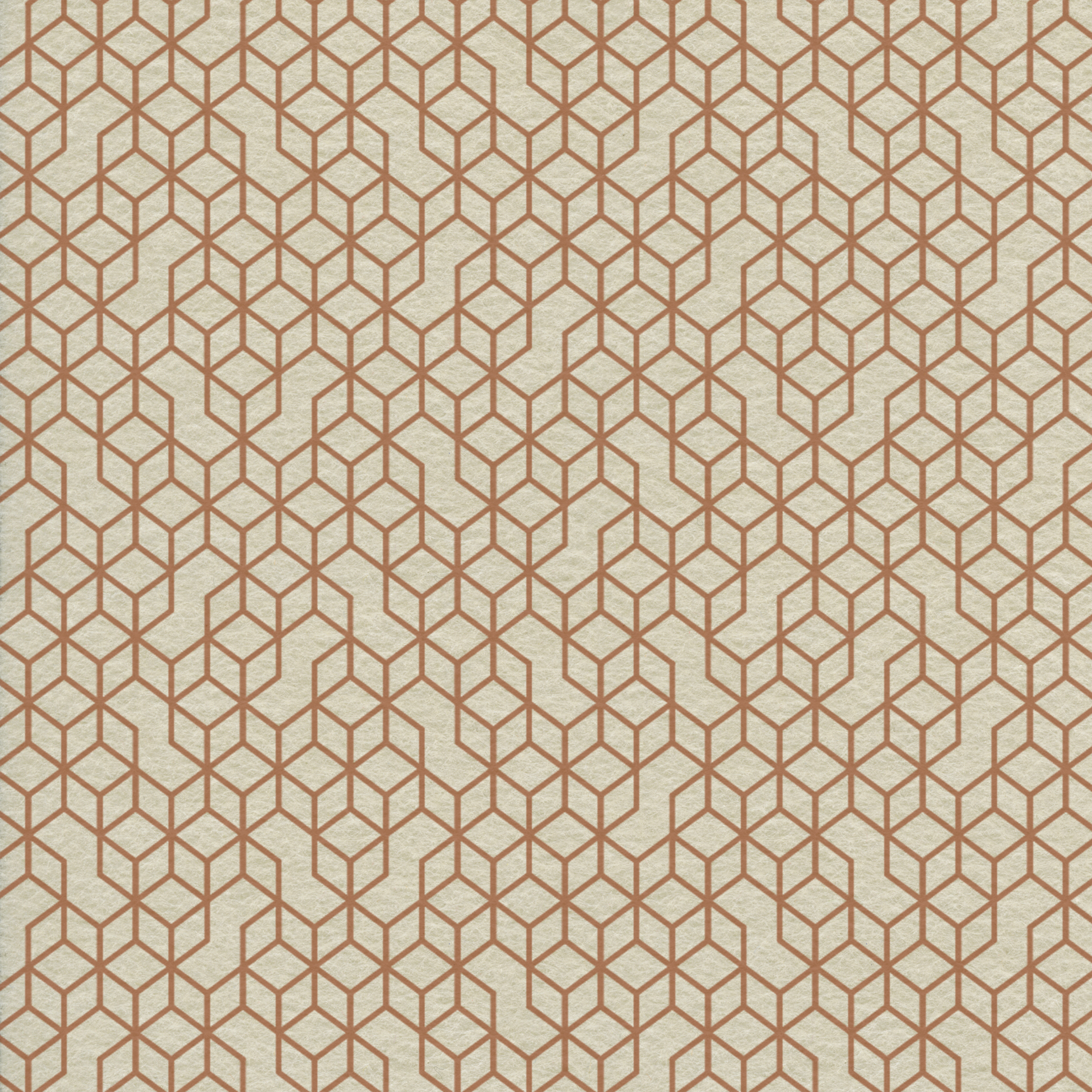

167
349

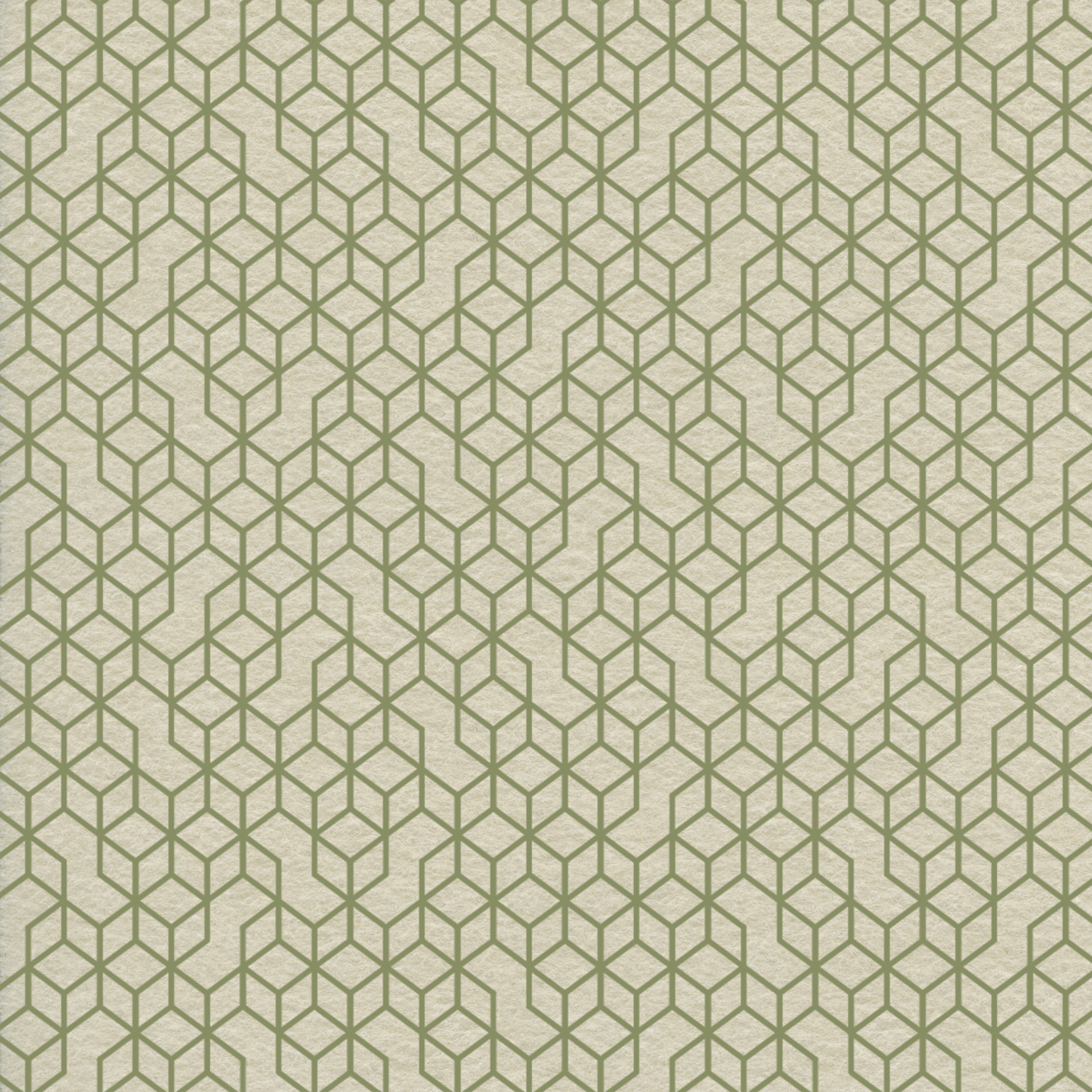

384
621
633
660
365
Product Specifications
Designer:
Woven Image (Amy Saunders)
Dimensions:
Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm), Thickness: 12mm (+/- 7%)
Pattern Repeat:
Horizontal: 196mm, Vertical 163mm
Composition:
100% PET (60% post-consumer recycled PET)
Fire Test Result:
AS 1530.3
ISO 9705: Group 1
BS EN 13501.1: Classification B - s1, d0
GB 8624 B1
Sound Absorption Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17
Weighted Alpha Coefficient (αw):
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Sound Absorption Average (SAA):
Direct fix: 0.43, 20mm air gap: 0.60, 50mm air gap: 0.75
Noise Reduction Coefficient (NRC):
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class:
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
