EchoPanel® Otto

EchoPanel Otto 660 Hero.jpg

EchoPanel^® Otto acoustic panels are suitable for a range of wall and partitioning applications including operable walls and workstation screens.

The design is made up of hexagonal outlines that read as a subtle texture from a distance and is available as a single or double-sided digital print.

Colourways

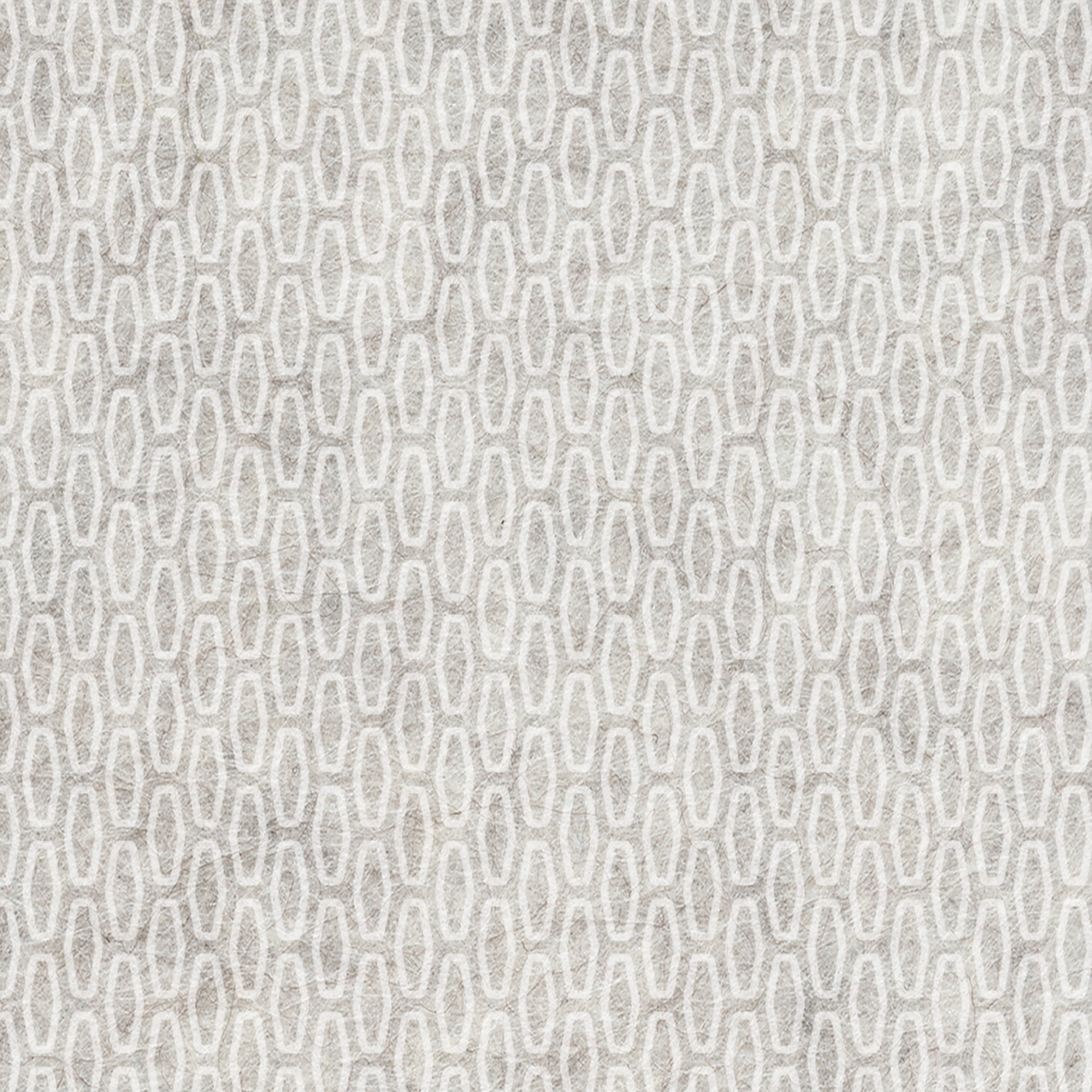

Otto 503 Calcite

503

Otto 907 Sandstone

907

100

Otto 402 Pebble

402

580

444

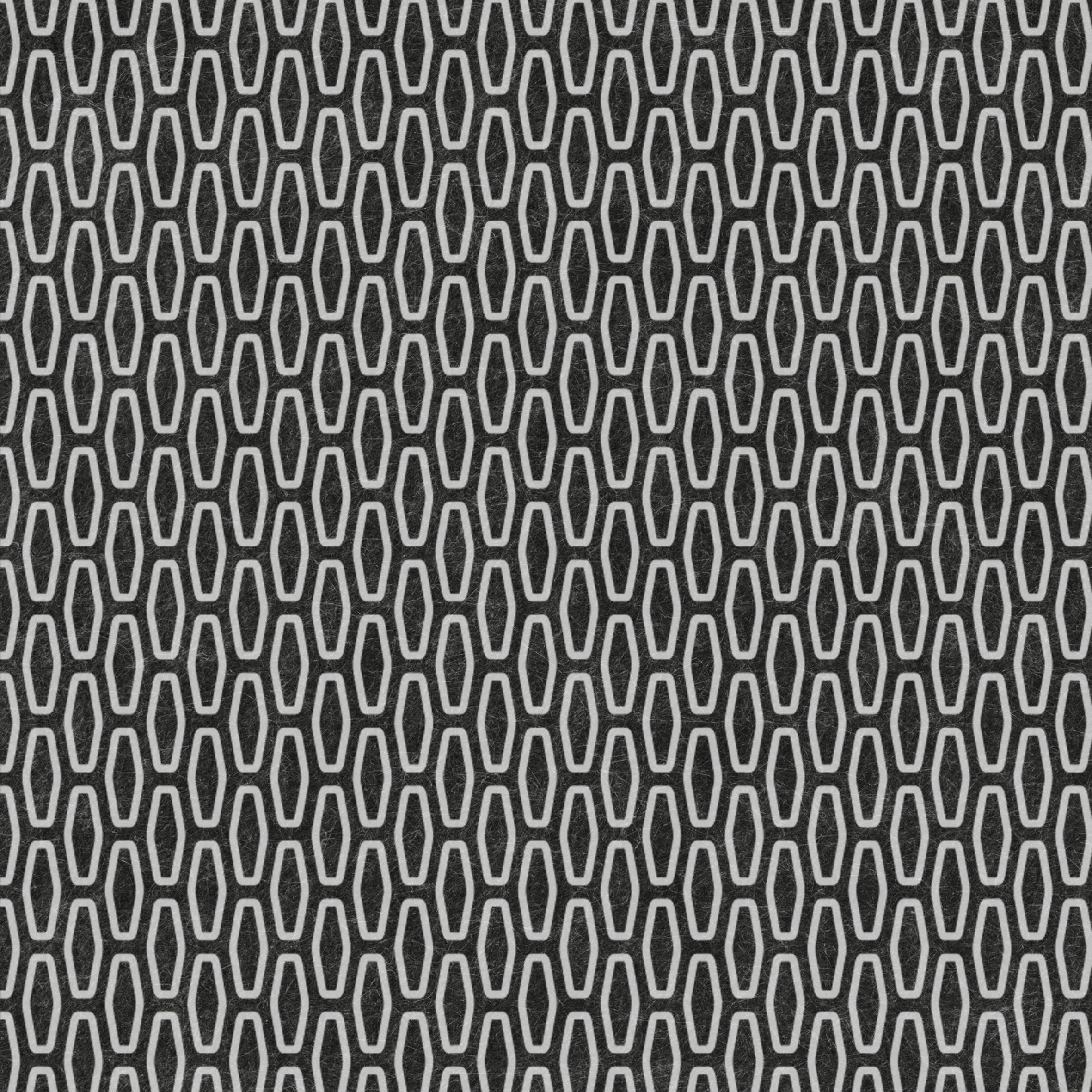

Otto 544 Starlight

544

545

Otto 274 Orchid

274

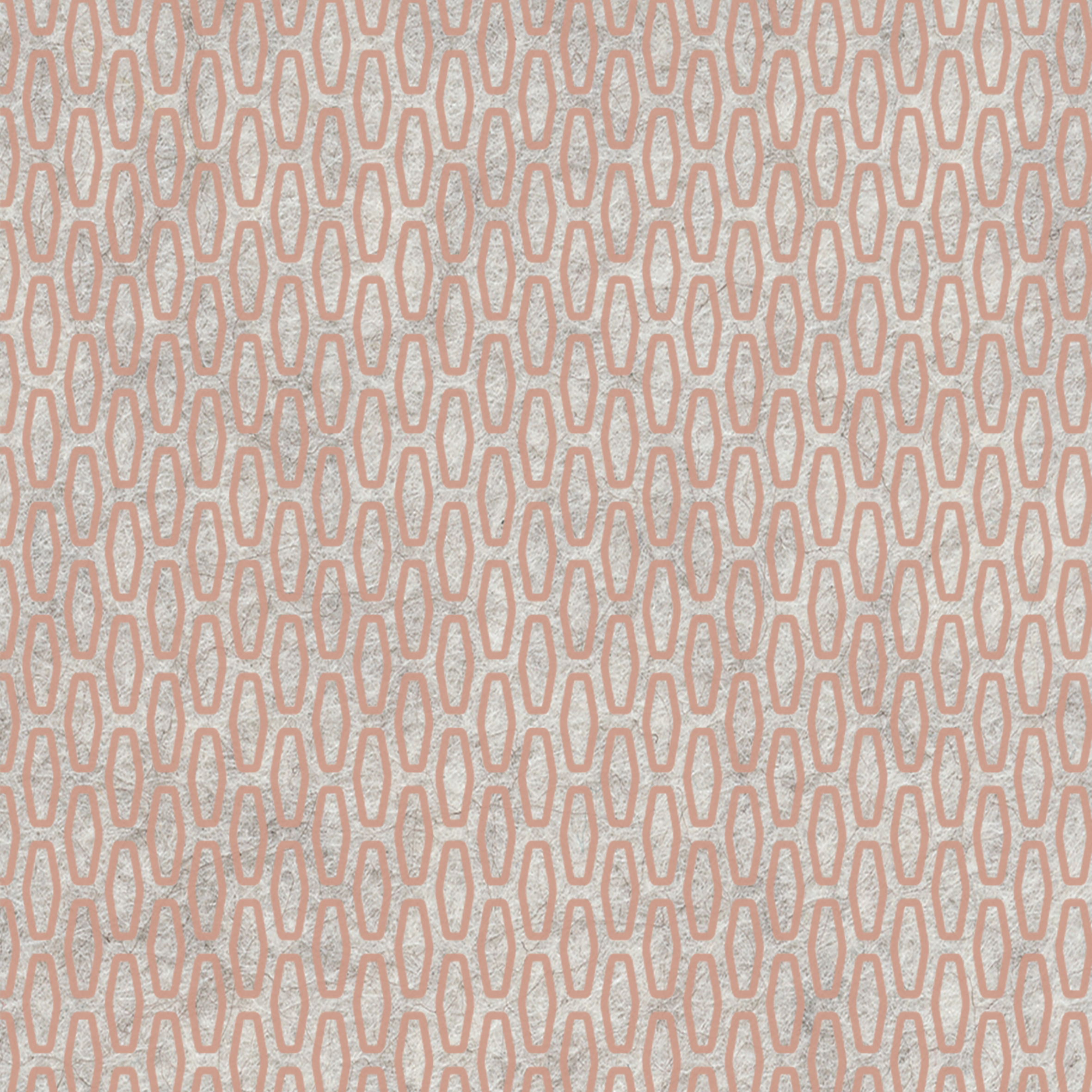

487

294

Otto 576 Magenta

576

124

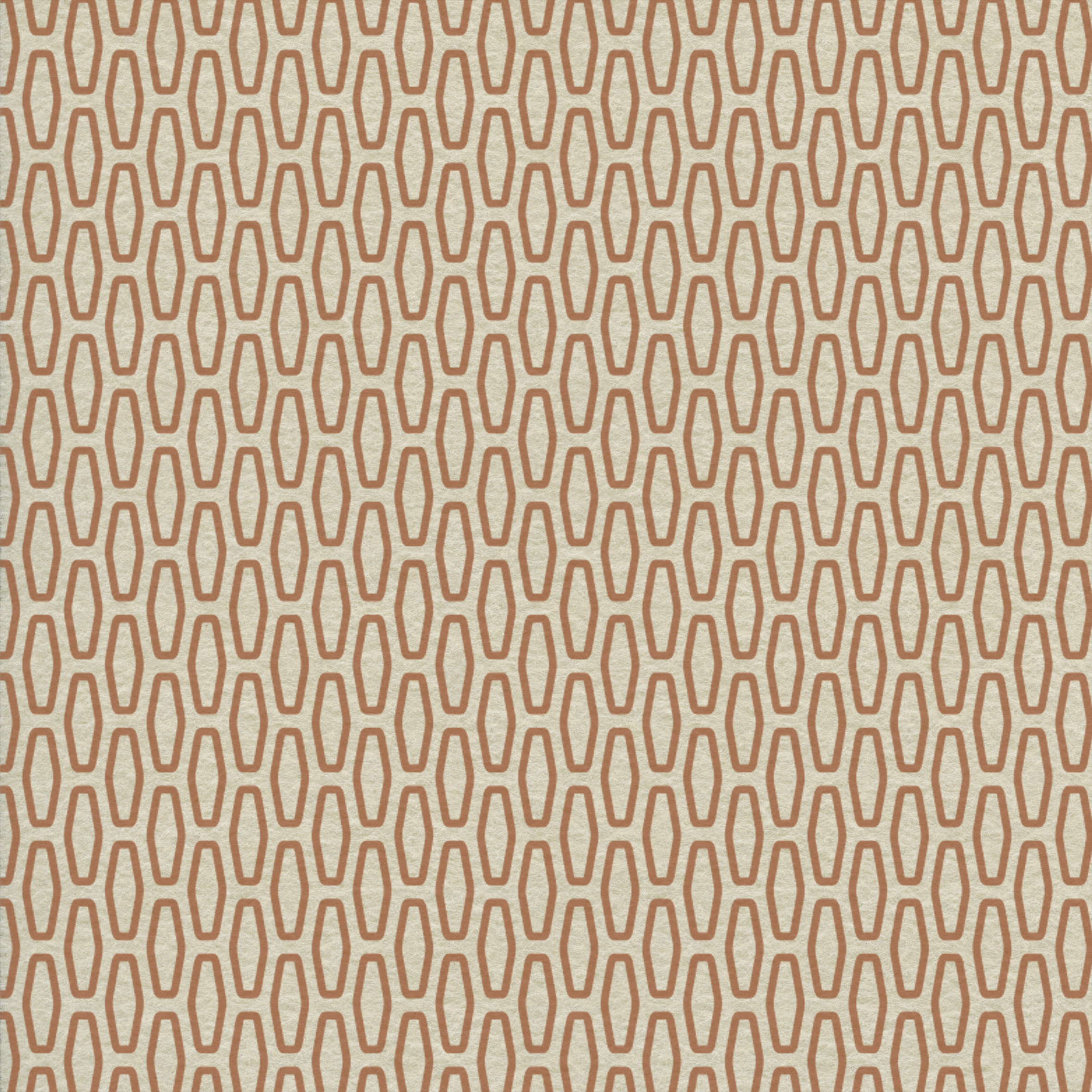

Otto 167 Cinnamon

167

Otto 349 Vineyard

349

384

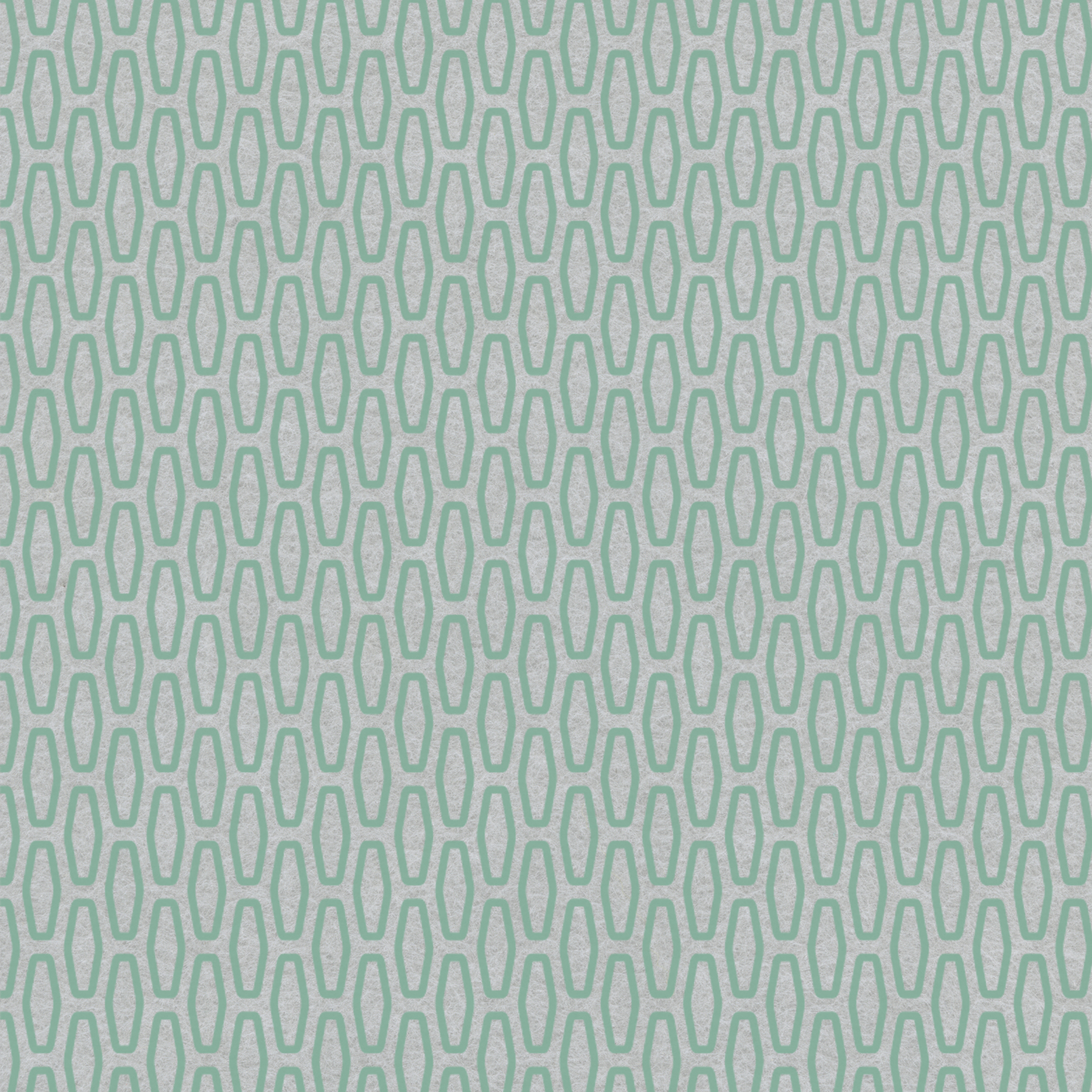

621

Otto 633 Pacific

633

Otto 660 Coronet

660

365

Download Colourways

Product Specifications

Designer:

Woven Image

Dimensions:

Length: 2800mm (+/- 10mm), Width: 1200mm (+/- 5mm), Thickness: 12mm (+/- 7%)

Pattern Repeat:

Horizontal: 15mm, Vertical: 20mm

Composition:

100% PET (60% post-consumer recycled)

Fire Test Result:

AS 1530.3
ISO 9705: Group 1
GB 8624 B1
BS EN 13501.1: Classification B - s1, d0

Sound Absorption Test Method:

AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17

Weighted Alpha Coefficient (αw):

Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)

Sound Absorption Average (SAA):

Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75

Noise Reduction Coefficient (NRC):

Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75

Sound Absorption Class:

D (Direct fix)
D (20mm air gap)
C (50mm air gap)

Download Technical Reports Download Specification
